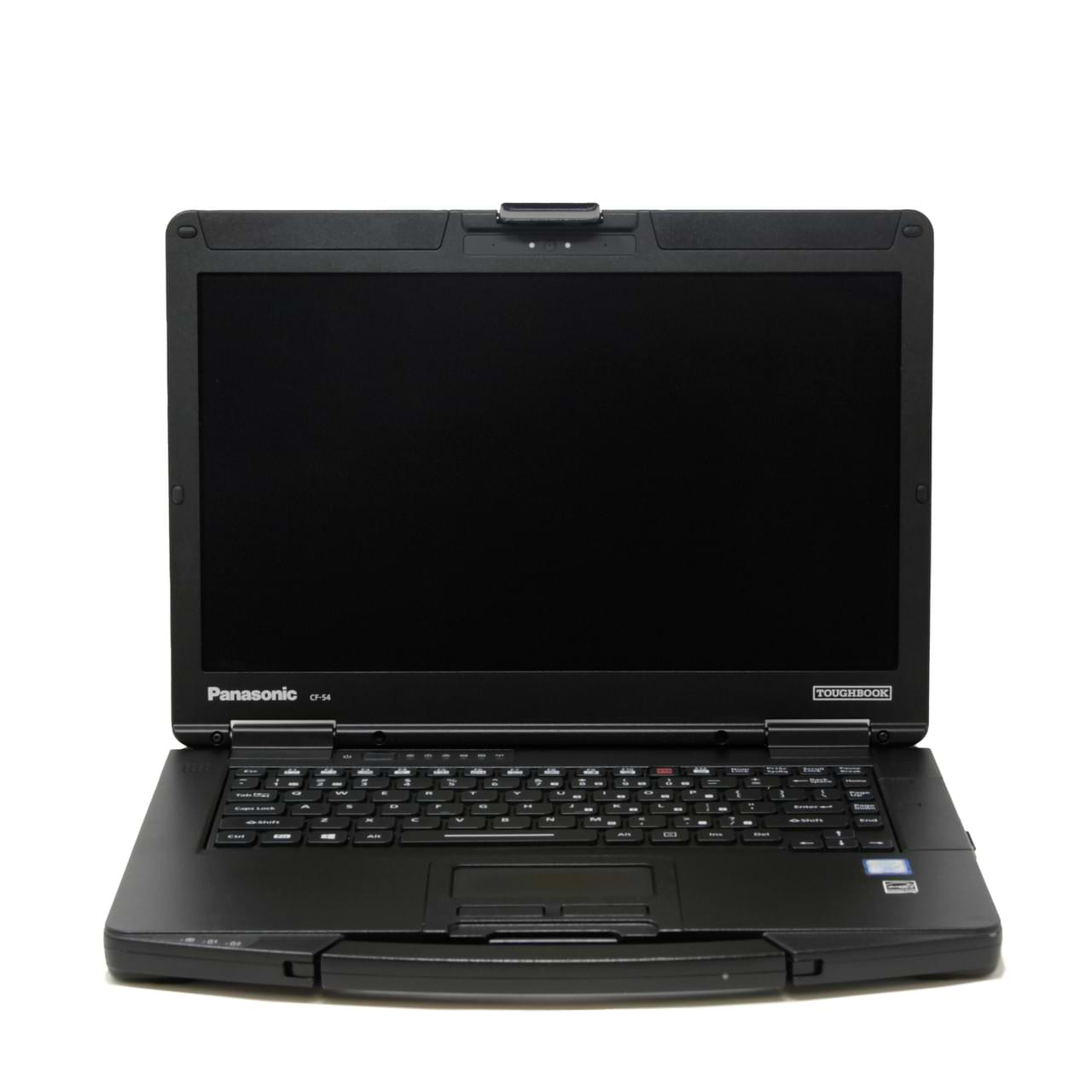

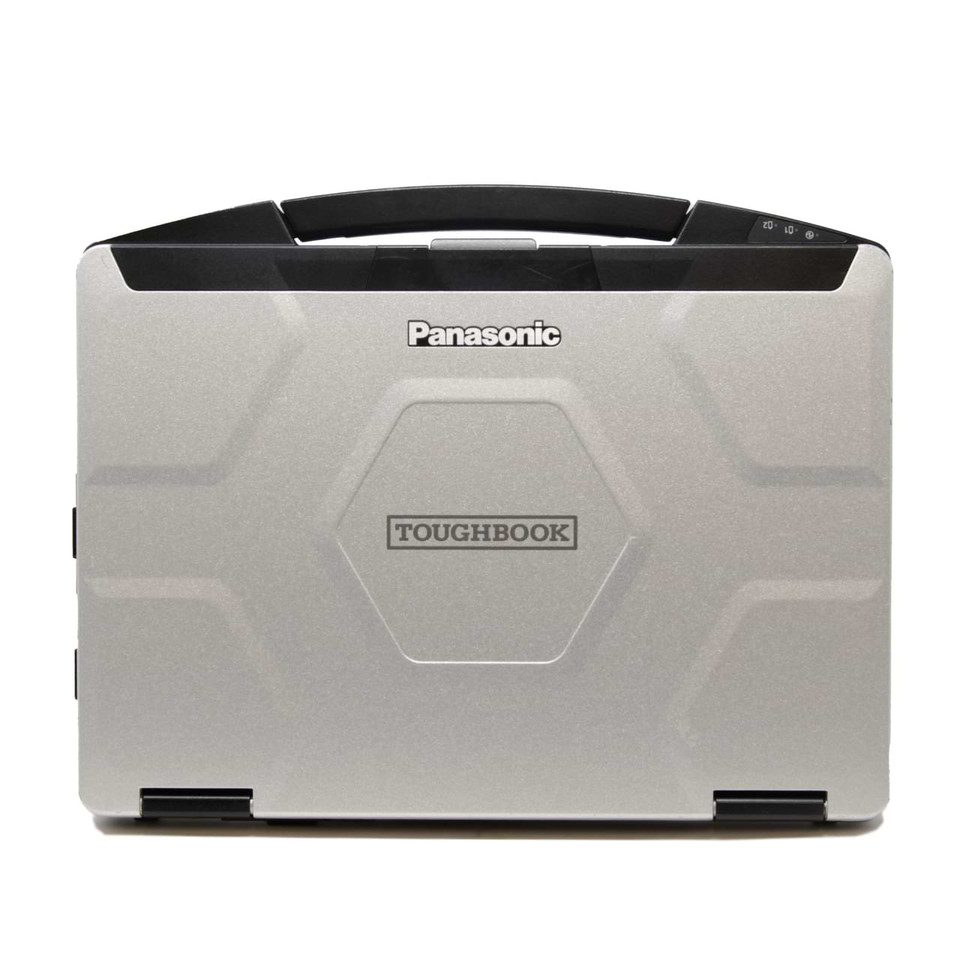

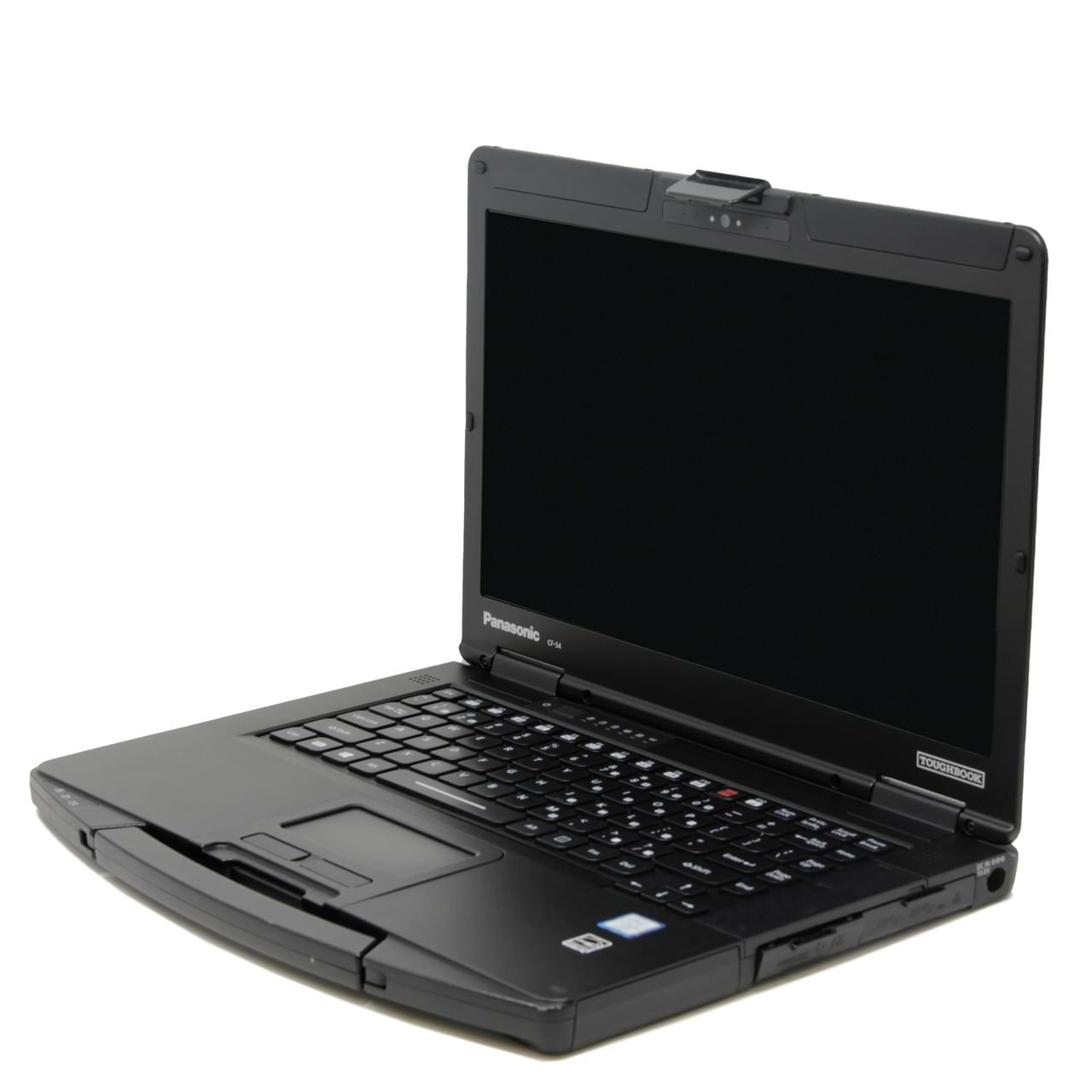

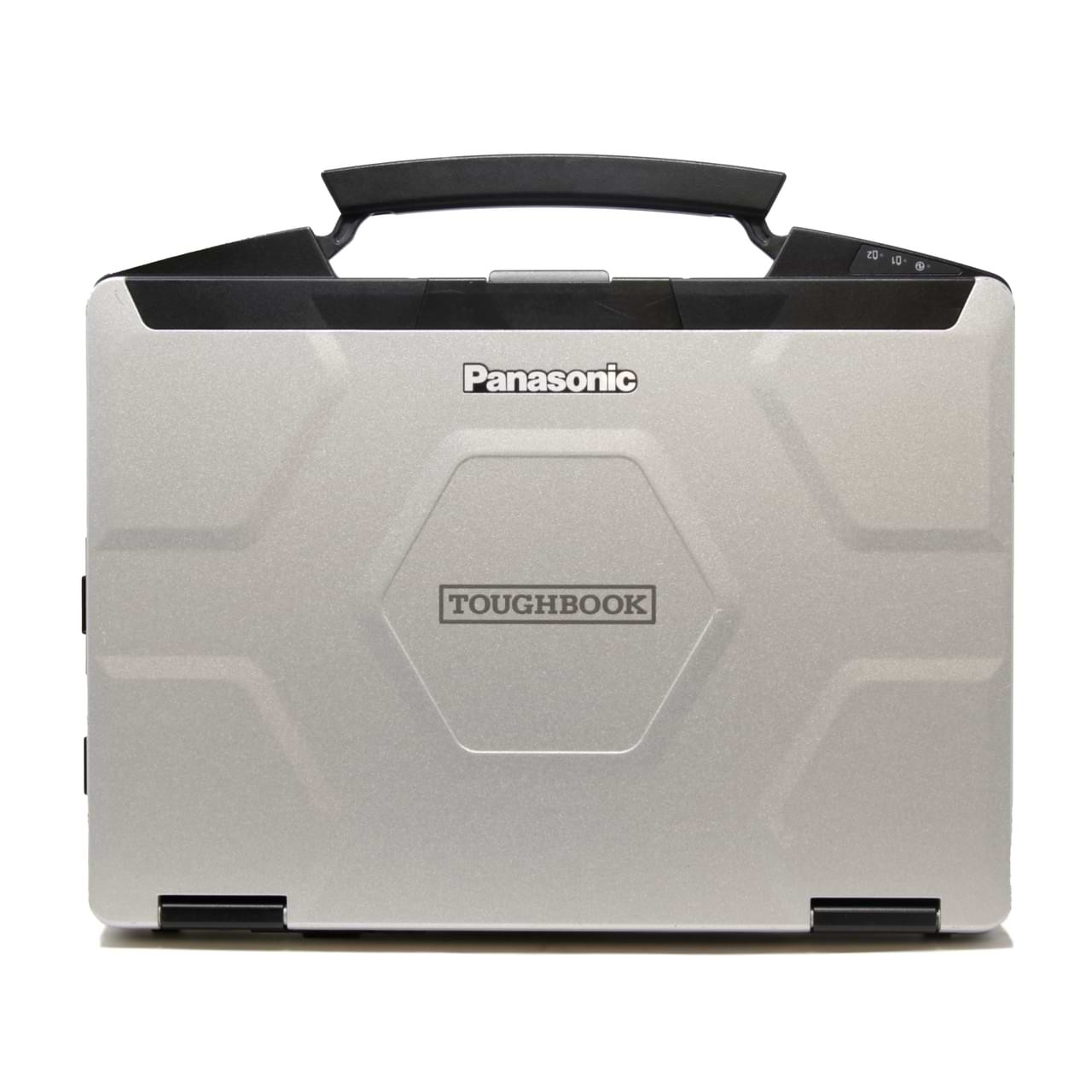

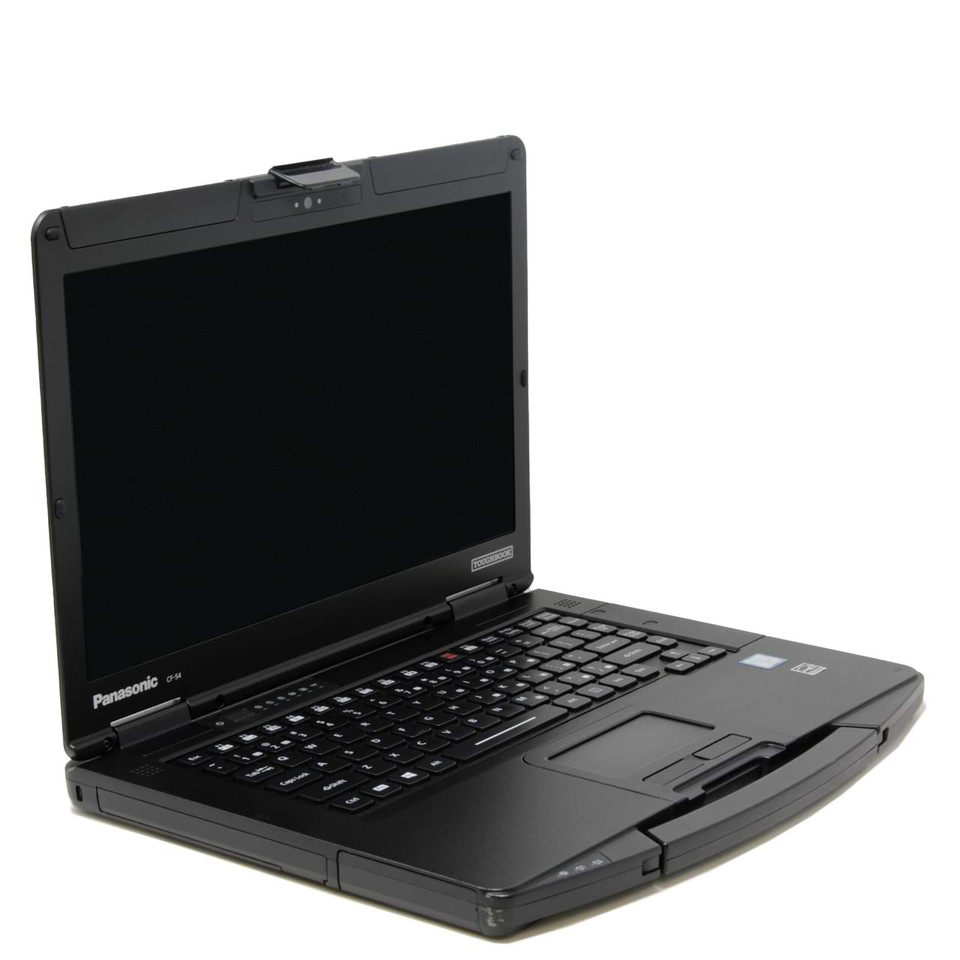

Panasonic Toughbook CF-54 Semi Rugged Laptop

šŸ”§ Panasonic TOUGHBOOK CF-54 | MK1 • MK2 • MK3

Fully Rugged • Semi-Rugged Laptop Built to Perform Anywhere

The Panasonic TOUGHBOOK CF-54 stands as a rugged marvel engineered for professionals who demand strength, reliability, and uncompromising performance. Available in three generations—MK1, MK2, and MK3—this semi-rugged laptop blends cutting-edge durability with customizable performance options, making it ideal for field workers, defense teams, police forces, and mobile professionals across Pakistan.


āœ… SOFTWARE:

  • Panasonic Utilities (including Dashboard)
  • Recovery Partition for quick system restoration
  • Enterprise-ready drivers: CAB files and one-click driver packages

šŸ›”ļø CERTIFICATIONS & DURABILITY:

  • MIL-STD-810G certified for shock, drop (up to 3′), vibration, sand, dust, altitude, temperature extremes, and humidity
  • IP51 rating – protection against dust and vertical water drops
  • Magnesium Alloy chassis with integrated carry handle
  • Spill-resistant keyboard and touchpad
  • Shock-mounted, caged storage drive with heater
  • Dual fans for performance models
  • Preinstalled screen protector (Gloved Multi Touch model)

šŸ’» OPERATING SYSTEM OPTIONS:

  • WindowsĀ® 7 Pro (MK1 – downgrade from Win 8.1)
  • WindowsĀ® 10 Pro 64-bit (MK2 & MK3)
  • Upgrade-ready to Windows 11 Pro (MK3)

āš™ļø CPU OPTIONS:

Model Processor Base / Turbo Clock Cache
MK1 IntelĀ® Coreā„¢ i5-5300U 2.3GHz / 2.9GHz 3MB
MK2 IntelĀ® Coreā„¢ i5-6300U 2.4GHz / 3.0GHz 3MB
MK2 IntelĀ® Coreā„¢ i5-7300U 2.6GHz / 3.5GHz 3MB
MK3 IntelĀ® Coreā„¢ i7-6600U 2.6GHz / 3.4GHz 4MB
MK3 IntelĀ® Coreā„¢ i7-7600U 2.8GHz / 3.9GHz 4MB

🧠 MEMORY (RAM):

  • 4GB / 8GB / 16GB DDR3L or DDR4 (based on generation)
  • Expandable up to 32GB (2 slots, tool-accessible)

šŸ’¾ STORAGE:

  • 256GB SSD (Standard)
  • Optional: 500GB HDD / 512GB SSD / 1TB SSD / OPAL-encrypted SSD
  • Quick-release, shock-mounted with integrated heater
  • Optional second storage drive (technician accessible)

šŸ–„ļø DISPLAY & GRAPHICS:

  • 14.0″ Display Options:
    • HD (1366 x 768) – Lite & Prime
    • FHD (1920 x 1080) – Performance & Gloved Multi Touch
  • Touchscreen (capacitive, glove + rain mode) on select models
  • 1000 nits brightness (Touchscreen model)
  • IPS technology with direct bonding (FHD)
  • Anti-glare & anti-reflective coating
  • IntelĀ® HD Graphics 520 / 620
  • Optional: AMD FireProā„¢ M5100 / Radeonā„¢ Pro WX 4150 (Performance models)
  • Triple monitor support via HDMI + VGA

šŸŽ§ AUDIO:

  • Dual integrated microphones
  • High-definition stereo speakers
  • Hardware volume and mute keys

šŸ“ø CAMERA:

  • Optional 2MP or 1080p HD webcam with privacy shutter (standard in MK3)
  • Dual mics and LED on/off indicator

āŒØļø INPUT DEVICES:

  • Full-size 87-key keyboard
    • Red backlit (MK2 & MK3), White backlit (MK1)
  • Electrostatic multi-touch touchpad
  • Optional stylus pen with holder (Touch models)
  • 2 customizable keys (A1/A2)

šŸ“€ DVD & MEDIA:

  • Optional DVD Super Multi Drive (media bay)
  • Optional secondary battery, PC Card, or SmartCard CAC reader in bay

šŸ”Œ INTERFACE & PORTS:

  • USB 3.0 x 3 (1 with 1.5A power output)
  • Optional USB 2.0, Rugged Fischer USB, or 4th USB port
  • HDMI + Optional VGA (D-Sub 15-pin)
  • SDXC card slot (UHS-II)
  • RJ-45 LAN + Optional second LAN port
  • Optional Serial (True RS-232), PC Card Type II
  • Audio In/Out Combo Jack
  • Mini-SIM Slot
  • Docking Connector (24-pin or 100-pin depending on generation)

šŸ“” WIRELESS & CONNECTIVITY:

  • IntelĀ® Dual Band Wi-Fi (7260 / 8260 / 8265 – varies by model)
  • BluetoothĀ® v4.0 / v4.1 + EDR (Class 1)
  • Optional 4G LTE Advanced with GPS (u-blox)
  • Certified with Verizon, AT&T, Sprint (in USA – unlocked in PK)
  • Optional dual high-gain antenna pass-through

šŸ”‹ BATTERY & POWER:

  • Standard: 6-cell Li-Ion Battery (approx. 4200mAh)
  • Optional: Lightweight or Media Bay 2nd Battery
  • Battery Life:
    • Lite: 7–9 hrs (up to 16 hrs with 2nd battery)
    • Prime/Touch/Performance: 10–12 hrs (up to 20 hrs with 2nd battery)
  • Hot-swappable support
  • Quick Charge: 80% in ~1 hour
  • AC Adapter: 100–240V auto-sensing global PSU

šŸ” SECURITY:

  • TPM v1.2 / v2.0 (varies by MK)
  • Kensington lock slot
  • AbsoluteĀ® Persistence Module in BIOS
  • Optional:
    • Fingerprint Reader
    • Insertable SmartCard CAC reader (bottom)
    • Contactless SmartCard CAC (ISO 14443 A/B, 13.56MHz)
    • NFC and BIOS password protection

šŸ“ DIMENSIONS & WEIGHT:

  • Dimensions: 13.6″ (W) x 10.7″ (D) x 1.2″ (H)
  • Weight:
    • Lite: 4.2 lbs (1.9kg)
    • Prime: 4.4 lbs
    • Performance/Touchscreen: 4.6 lbs (2.1kg)

šŸŽ’ ACCESSORIES (Optional):

  • AC Adapter: CF-AA5713AM
  • Port Replicator: CF-VEB541
  • Battery Charger: CF-VCBTB2W
  • Stylus: FZ-VNPM11U
  • Screen Protector Film: CF-VPF25U
  • Tether Cable: CF-VNT002U

🧱 RUGGEDNESS AT ITS CORE:

  • Magnesium alloy chassis with honeycomb design
  • MIL-STD-810G tested for rugged use
  • Drop resistance: 76cm (MK1) and 91cm (MK3)
  • Weather tested for rain, dust, and high/low temperature use
  • Operating temp: -10°C to 50°C

šŸ“¦ AVAILABLE VARIANTS:

Variant Processor Display Touch RAM Storage
CF-54 MK1 i5-5300U FHD No 8GB 500GB HDD
CF-54 MK2 i5-6300U FHD No 16GB 256GB SSD
CF-54 MK2 i5-7300U FHD Touch 16GB 512GB SSD
CF-54 MK3 i7-6600U FHD No 16GB 256GB SSD
CF-54 MK3 i7-7600U FHD Touch 32GB 1TB SSD

🌐 Ideal for:

  • Field Engineering
  • Law Enforcement
  • Warehousing
  • Automotive Diagnostics
  • Military & Tactical Use
  • Outdoor Business Operations in Pakistan

šŸ”’ Backed by Panasonic’s legendary TOUGHBOOK reliability. Built for the most demanding environments across Karachi, Lahore, Islamabad, and beyond.
šŸ“ž Contact us today for availability and customized configurations.
