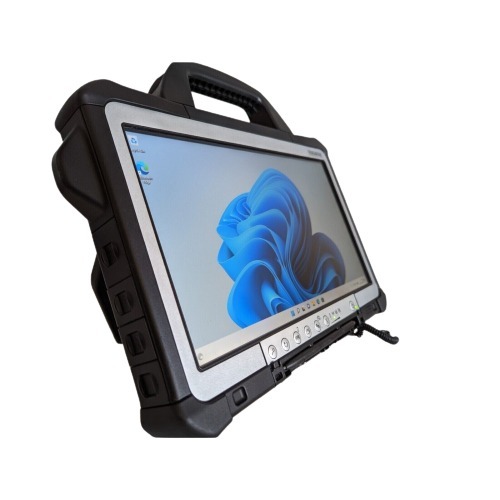

Panasonic Toughbook CF-D1 Rugged Tablet

🔰 Panasonic TOUGHBOOK CF-D1

Intel® Core™ i5 6th Gen | Fully Rugged Diagnostic Tablet | 13.3″ Touchscreen | Windows 10 Pro

Built to excel in the toughest conditions, the Panasonic TOUGHBOOK CF-D1 is the ultimate rugged diagnostic tablet. With a powerful Intel® Core™ i5 6th Gen processor, sunlight-readable 13.3” display, modular expansion, and certified rugged durability, it’s perfect for automotive, industrial, field service, and military applications.

💻 SOFTWARE

• Pre-installed Genuine Windows 10 Pro 64-bit
• Fully compatible with diagnostic & industrial software suites

🛡 CERTIFICATIONS & DURABILITY

• IP65 rated: Dust-tight & water-resistant**
• Drop tested: Survives 90cm drop to concrete**
• MIL-STD-810G Certified: Resistant to vibration, temperature, shock, and humidity
• Operating Temperature: -10°C to 50°C — made for extreme field use

⚙️ CPU, STORAGE & MEMORY

• Processor: Intel® Core™ i5-6300U vPro™ (6th Generation)
  • Base Frequency: 2.4GHz
  • Turbo Boost: Up to 3.0GHz
  • 3MB Smart Cache
• RAM: 4GB DDR3L SDRAM (expandable up to 8GB)
• Storage: 500GB SATA HDD (Optional SSD upgrade available)

📺 DISPLAY & GRAPHICS

• Screen: 13.3” WXGA IPS Touchscreen (1366×768 resolution)
• Outdoor-Readable: 400cd/m² brightness – perfect for sunlight use
• Touchscreen: Resistive multi-touch – works with gloves/stylus
• Graphics: Intel® HD Graphics 520

📡 CONNECTIVITY

• Wi-Fi: Intel® Dual Band Wireless-AC 8260 (802.11 a/b/g/n/ac)
• Bluetooth®: v4.1 (Class 1 – Classic & Low Energy)
• Mobile Broadband (Optional): 4G/LTE – Sierra Wireless MC7305
• GPS (Optional): CF-WGPD12 module supported

🔌 INTERFACE

• USB Ports: 1x USB 3.0, 2x USB 2.0
• LAN: 1x RJ45 Gigabit Ethernet
• Audio I/O: Headphone output + Microphone input
• Card Slots: SDXC, PC Card, Express Card
• Docking Connector: 100-pin dedicated docking interface

🔄 OPTION PORTS

• Port 1: VGA or Serial (RS232)
• Port 2: LAN (RJ45)
• Port 3: Rugged USB / Extra USB / Second LAN
• Optional accessories: Handle, Strap, Stand, Tether

📷 CAMERA & AUDIO

• Rear Camera: 5MP Autofocus
• Speakers: Integrated mono speaker

🔋 BATTERY & POWER

• Battery Type: Li-Ion 6-cell (Model: CF-VZSU73U)
• Battery Life: Up to 12 hours (MobileMark 2007 benchmark)
• Charging Time: Approx. 2 hours with AC adapter

🔒 SECURITY FEATURES

• Smart Card Reader (built-in)
• Kensington Lock Slot
• Intel® vPro™ + BIOS/HDD password protection

📐 DIMENSIONS & WEIGHT

• Size: 349mm (W) x 244mm (H) x 46mm (D)
• Weight: Approx. 2.2 kg

🧰 ACCESSORIES (Compatible Models)

• AC Adapter: CF-AA5713AM
• Port Replicator: CF-VEBD11AU (USB, HDMI, VGA, Serial, Audio)
• Port Replicator with DVD: CF-VEBD11U
• Battery Charger: CF-VCBTB3W
• Stylus Pen: CF-VNP019U
• Tether Strap: CF-VNT004U
• Screen Protector: CF-VPF23U

✅ Perfect For:

Engine diagnostics, field service, workshop testing, heavy machinery maintenance, emergency services, and mobile technicians working in challenging environments.
