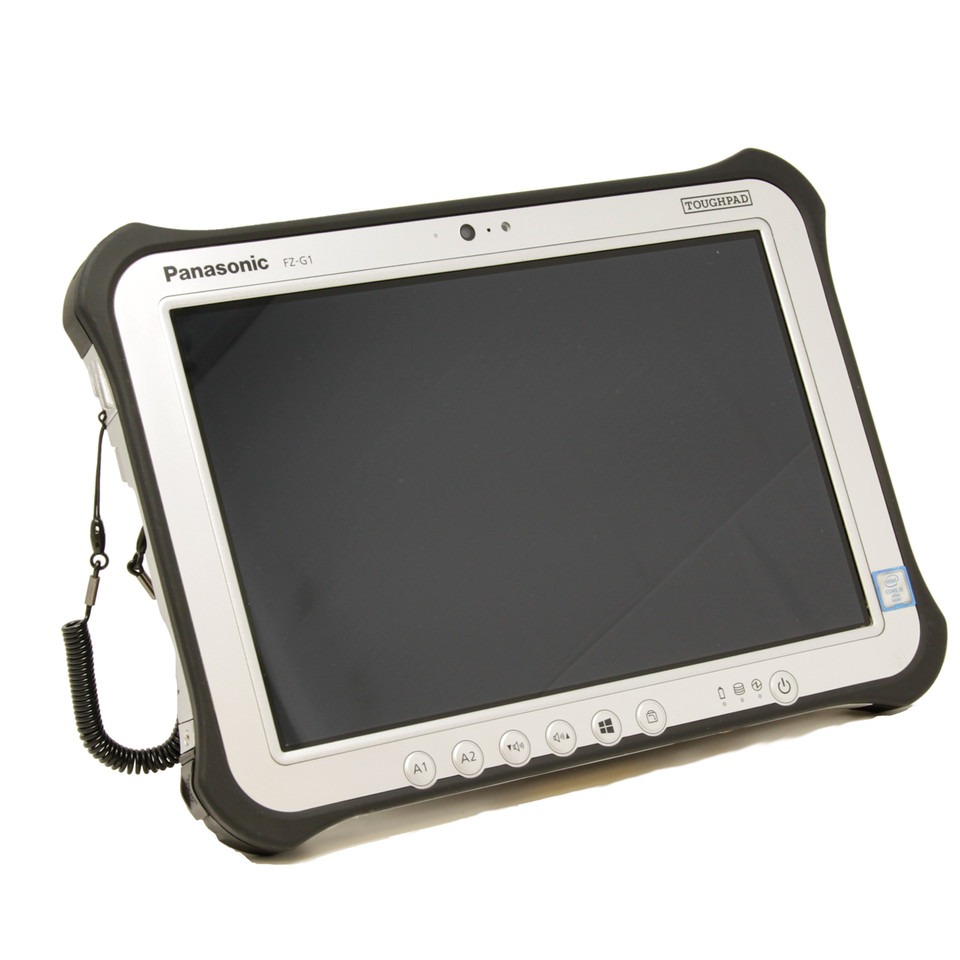

Panasonic Toughbook FZ-G1 Rugged Tablet

🔧 Panasonic Toughbook FZ-G1 Rugged Tablet – i5 4th, 5th, 6th & 7th Gen Variants

Engineered to Endure | Ultra-Rugged. Ultra-Portable.
The Panasonic Toughpad FZ-G1 is built to meet military standards and extreme field conditions. Whether you’re working in industrial, defense, emergency response, or utility sectors—this lightweight, rugged tablet provides high performance, sunlight-readable touch display, long battery life, and versatile connectivity in a compact MIL-STD-810G/IP65 certified design.

💻 Model Overview

• Brand: Panasonic
• Series: Toughpad
• Model: FZ-G1 (MK4 / MK5 / MK6)
• Form Factor: Rugged Tablet
• Color: Silver / Black
• Weight: Approx. 1.1 kg
• Dimensions: 270 mm x 188 mm x 19 mm
• Operating System: Windows 10 Pro / Windows 8.1 Pro

⚙️ Processor Variants

• Cores/Threads: Dual-core, 4 threads
• Cache: 3MB Smart Cache
• vPro Support: Yes (for i5-5300U, i5-6300U, i5-7300U)

🖥️ Display & Graphics

• Display Size: 10.1″ WUXGA IPS LCD
• Resolution: 1920 x 1200
• Brightness: 800 nits, Sunlight-readable
• Touchscreen: 10-point capacitive, supports thin-nib stylus
• Graphics: Intel HD Graphics 4400 / 5500 / 520 (depending on model)
• Sensors: Ambient Light, Gyro, Accelerometer, Compass, Auto-Rotation

💾 Memory & Storage

• RAM Options: 4GB / 8GB DDR3L
• Storage Options:
  • 128GB SSD (standard for i5-5300U)
  • 256GB SSD (common for i5-6300U & i5-7300U)
  • Upgradeable in most variants

📸 Cameras

• Front Camera: 720p HD
• Rear Camera: 8MP with LED Flash & Auto-Focus

🔌 Ports & Connectivity

• USB Ports: 1 x USB 3.0
• HDMI: 1 x HDMI
• Audio: Combo Audio Jack
• Docking Port: Panasonic 24-pin connector
• Card Slot: SDXC (UHS-II Compliant)

🌐 Networking & Wireless

• Wi-Fi: Intel Dual Band 802.11 a/b/g/n/ac
• Bluetooth: Version 4.0 or 4.1
• WWAN (Optional): 4G LTE (Gobi 5000)
• GPS (Optional)

🔐 Security Features

• TPM 1.2 / 2.0 (based on model)
• Kensington Lock Slot
• Password Protection: BIOS, Supervisor, User
• Optional: Smart Card Reader, Fingerprint Reader

🔋 Battery & Power

• Main Battery: 4-cell Li-Ion 7.2V, 4,800 mAh
• Bridge Battery: Internal 2-cell (for hot swapping)
• Battery Life: Up to 13 hours (with bridge battery)
• Charger: 100–240V AC, 16V DC, 4.06A

✅ Rugged Certifications

• MIL-STD-810G Certified (Drop, Shock, Vibration)
• IP65 Sealed (Dust & Water Resistance)
• MIL-STD-461F (EMI/RFI Compliance)
• Operating Temperature: -10°C to 50°C
• Storage Temperature: -20°C to 60°C

📦 Package Includes

• Panasonic FZ-G1 Rugged Tablet
• Battery Pack
• Panasonic AC Adapter
• Thin-nib Stylus
